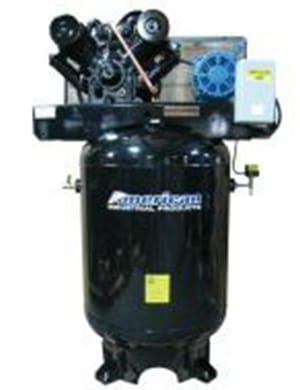

American Industrial Piston Type Air Compressor
5 Hp
CI521E80V
- 5HP 1PHASE MOTOR
- 80 GALLON VERTICAL
- 2 STAGE CAST IRON PUMP
- 20 CFM 175 PSI
- MAG STARTER
- 740 PUMP RPM
- 2 CYLINDER
- OUTLET SIZE 3/4 NPT
- 28 AMPS
- 32” X 40” X 78” 580 LBS
10 Hp
CI1021E120V
- 10HP 1PHASE MOTOR
- 120 GALLON VERTICAL
- 2 STAGE CAST IRON PUMP
- 40 CFM 175 PSI
- MAG STARTER
- 760 PUMP RPM
- 4 CYLINDER
- OUTLET SIZE 3/4 NPT
- 50 AMPS
- 40” X 45” X 78” 880 LBS

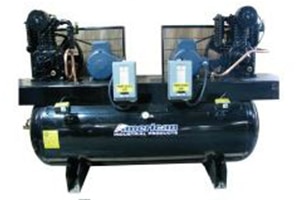

2×5 Hp
2-CI521E120H
- 2- 5HP 1PHASE MOTORS
- 120 GALLON HORIZONTAL
- 2 STAGE CAST IRON PUMPS
- 44 CFM 175 PSI
- MAG STARTERS
- 740 PUMP RPM
- OUTLET SIZE 3/4 NPT
- 28 AMPS EACH MOTOR (2)
- 36” X 86” X 56” HIGH 1070 LBS
7.5 Hp
CI7521E80V
- 7.5HP 1PHASE MOTOR
- 80 GALLON VERTICAL
- 2 STAGE CAST IRON PUMP
- 26 CFM 175 PSI
- MAG STARTER
- 740 PUMP RPM
- 2 CYLINDER
- OUTLET SIZE 3/4 NPT
- 40 AMPS
- 32” X 40” X 78” 624 LBS
15 Hp
TUK15023E120H
- 15HP 3PHASE MOTOR
- 120 GALLON HORIZONTAL
- 2 STAGE CAST IRON PUMP
- 60 CFM 175 PSI
- MAG STARTER
- 760 PUMP RPM
- 3 CYLINDER
- OUTLET SIZE 3/4 NPT
- 48 AMPS/230 V, 21 AMPS/460 V
- 36” X 81” X 63” HIGH 1208 LBS
2x 7.5 Hp
2-CI7521E120H
- 2- 7.5HP 1PHASE MOTORS
- 120 GALLON HORIZONTAL
- 2 STAGE CAST IRON PUMPS
- 52 CFM 175 PSI
- MAG STARTERS
- 740 PUMP RPM
- OUTLET SIZE 3/4 NPT
- 40 AMPS EACH MOTOR (2)
- 36” X 86” X 56” 1170 LBS
