Installation Photos

IN WALL 3/4”-1” MAXLINE

  • In Wall, for this scenario a Maxline compression elbow takes up a lot of space
  • Use a black pipe nipple and black pipe threaded elbow behind the outlet

1/2” MAXLINE

  • In Wall, if there is room in the wall, you can bend the tubing behind the outlet
  • If the wall space is limited, an elbow is needed

1/2” MAXLINE

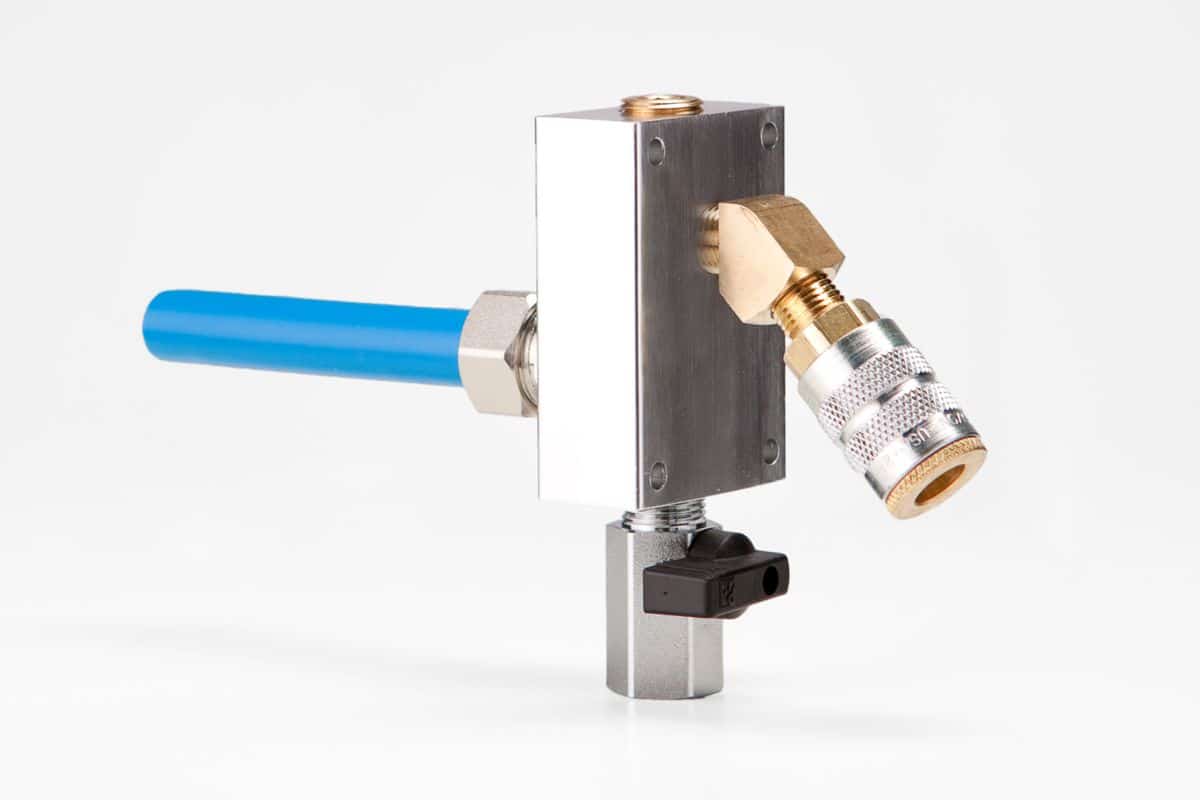

  • M3810 Single port outlet Kit, 1/4″ Female NPT Out
  • Can configure for In Wall, On Wall, Ceiling and Outdoor applications
  • #M3810V Single port outlet Kit with shutoff

1/2” MAXLINE

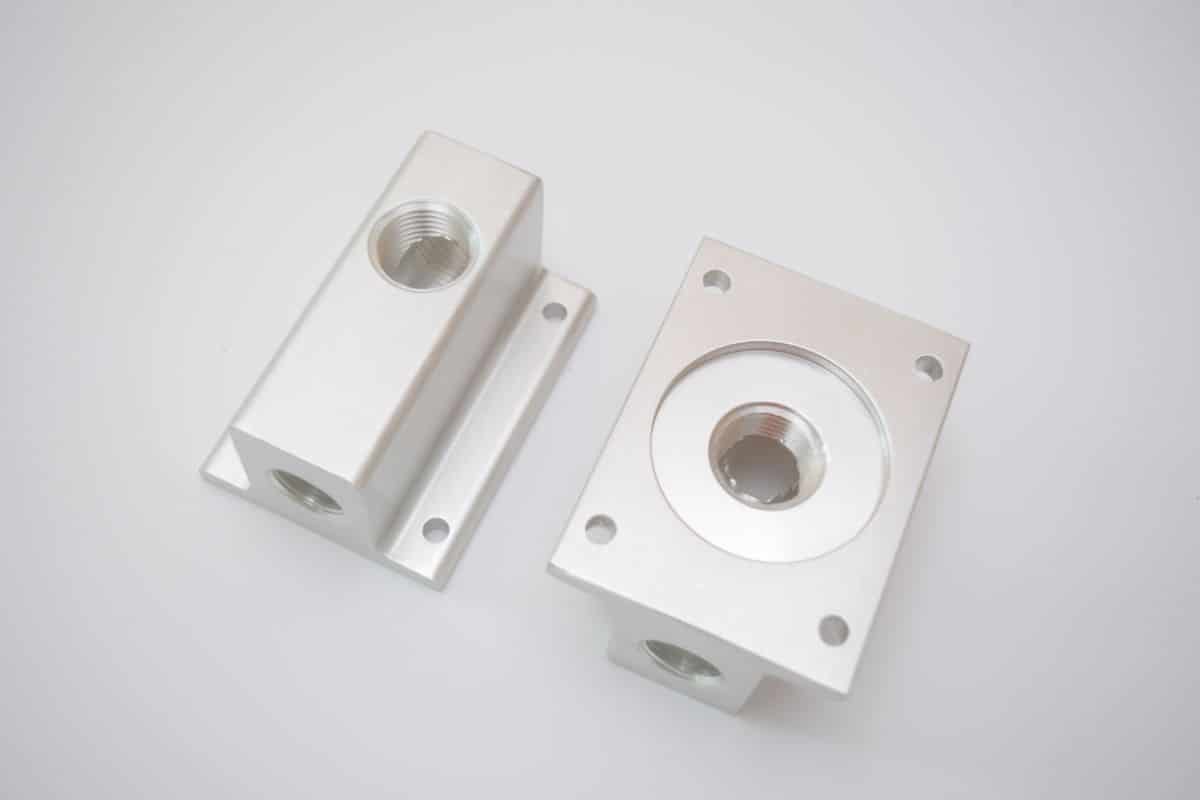

#M3810 outlet kit uses aluminum block #90120

1/2” MAXLINE

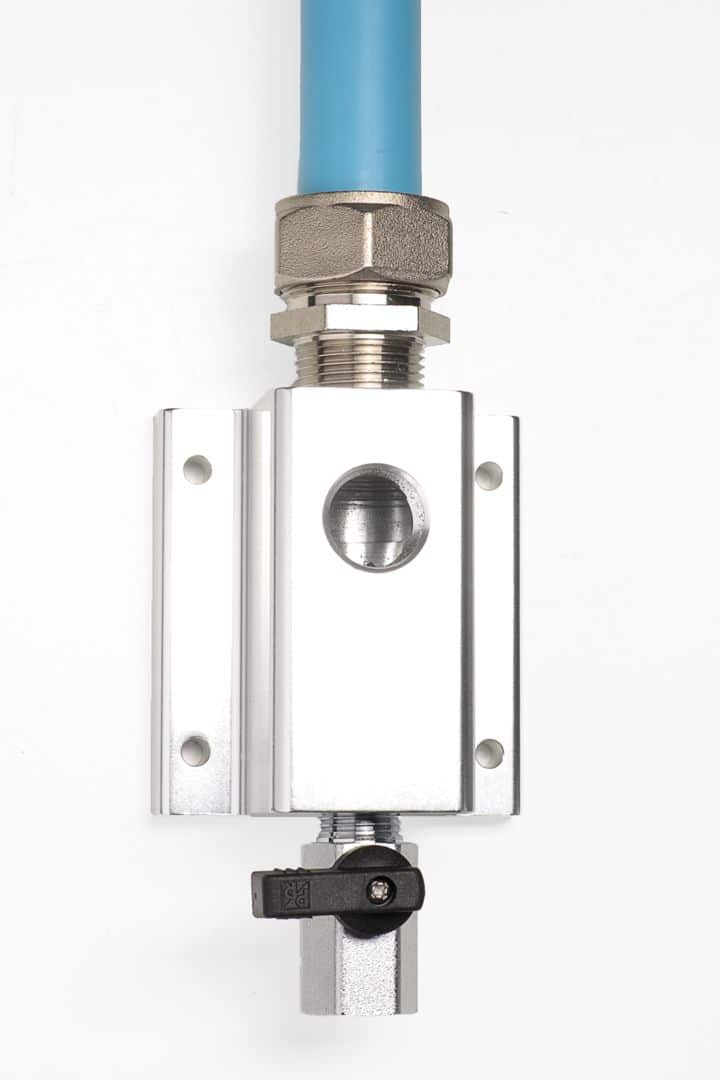

  • #M8101 Single port outlet Kit, 1/2″ Female NPT Out
  • Can configure for In Wall, On Wall, Ceiling and Outdoor applications
  • #M8101V Single port outlet Kit with shutoff

1/2” MAXLINE

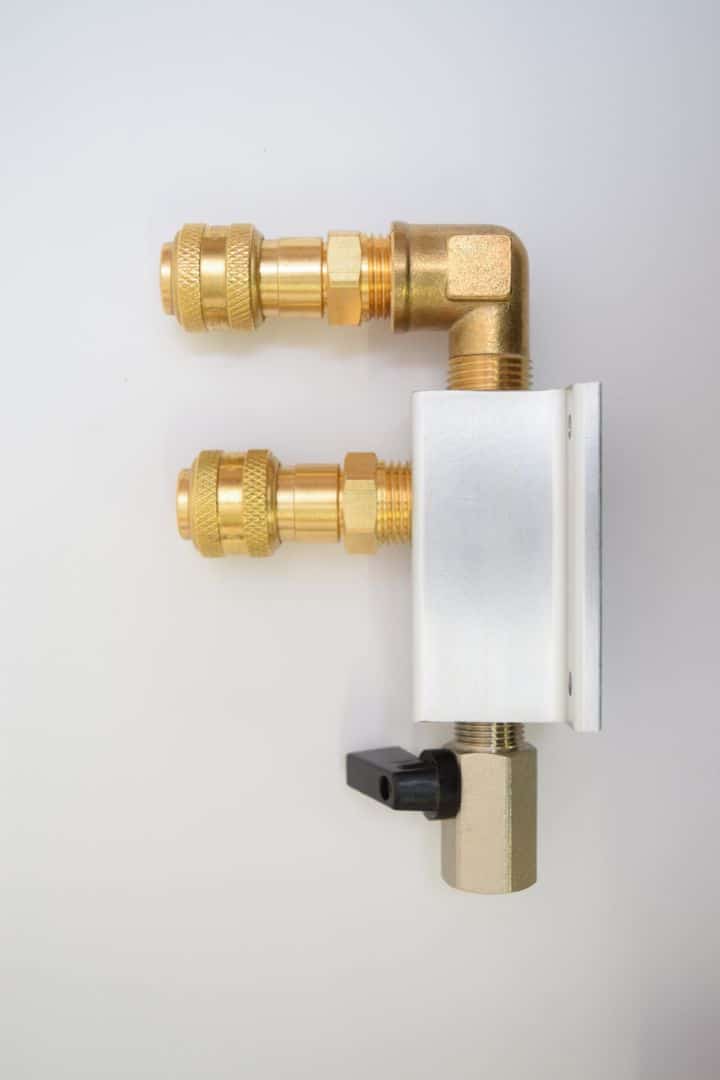

  • #M3820 Compressor Manifold Kit
  • Can configure for In Wall or On Wall

1/2” MAXLINE

#M3820 Compressor Manifold Kit uses aluminum block #M38220

3/4” MAXLINE

  • #M7510 Single port outlet Kit, 1/2″ Female NPT Out
  • Can configure for In Wall, On Wall, Ceiling and Outdoor applications
  • #M7510V Single port outlet Kit with shutoff

1/2”-3/4” MAXLINE

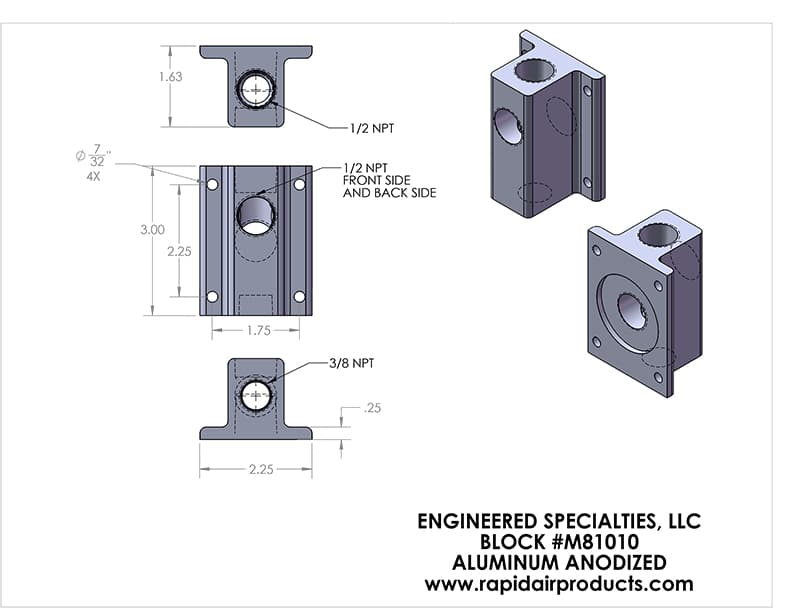

#M8101 and M7510 outlet kit use aluminum block #M81010

3/4” MAXLINE

  • There is not a standard compressor manifold kit for the 3/4” Size
  • Use a tee fitting to split the line by the compressor

Dual Port Outlet Kit

  • M8200: 1/2” Maxline, 1/2” Female NPT Outlets (4X)
  • M8201: 3/4” Maxline, 1/2” Female NPT Outlets (4X)
  • M8203: 1” Maxline, 1/2” Female NPT Outlets (4X)

Includes compression threaded adapter, outlet body, drain valve, (2) 1/2″ npt plugs

Each side of outlet has an extra ½” NPT port, 2 plugs included

Dual Port Outlet Kit With Shutoff

  • M8200V: 1/2” Maxline, 1/2” Female NPT Outlets (4X)
  • M8201V: 3/4” Maxline, 1/2” Female NPT Outlets (4X)
  • M8203V: 1” Maxline, 1/2” Female NPT Outlets (4X)

Includes compression threaded adapter, top shutoff valve, outlet body, drain valve, (2) 1/2″ npt plugs

Each side of outlet has an extra ½” NPT port, 2 plugs included

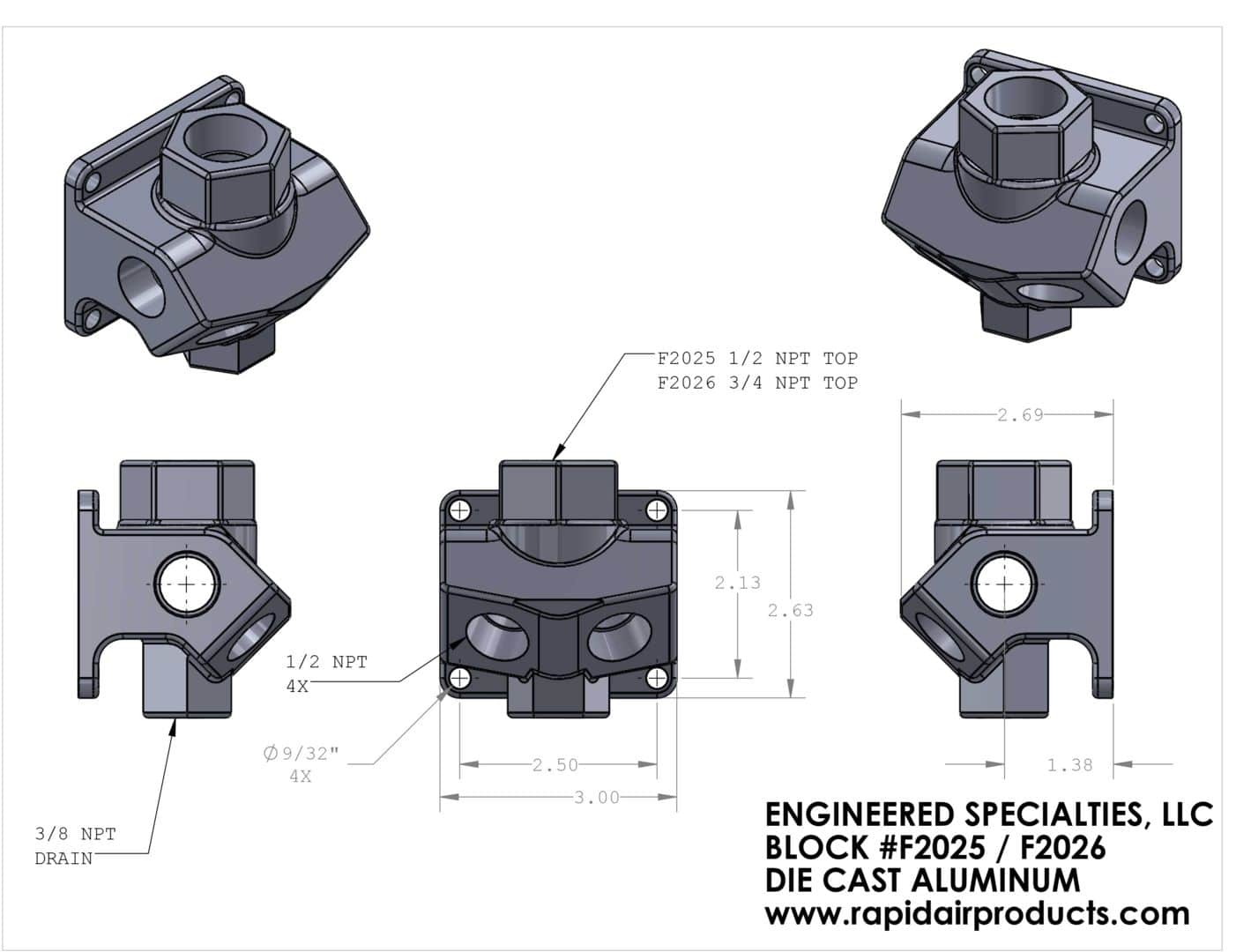

Dual Port Outlet Drawing

Each side of outlet has an extra ½” NPT port, 2 plugs included

Dual Port Outlet

  • F2025: 1/2” Threaded Female NPT Top, 1/2” Female NPT Outlets (4X)
  • F2026: 3/4” Threaded Female NPT Top, 1/2” Female NPT Outlets (4X)

Includes outlet body, drain valve, (2) 1/2″ npt plugs

Use these bare outlet bodies for connecting to other threaded pipe systems like copper or black pipe

Maxline TUBING

  • Maxline tubing can be formed into a sweeping curve much like electrical conduit, in some installations eliminating the need for an elbow fitting in the corners
  • Outside corners typically need an elbow fitting
  • When formed into a corner sweep, the Maxline tubing will hold it shape

Maxline TUBING

In Floor/Burial

  • Maxline can be buried under concrete, underground
  • Sleeve any Maxline coming thru the concrete
  • If fittings need to be buried, use heat shrink tubing or wrap to keep the elements off of them, use caution not to overheat
  • Best to come in the top of a wall outlet to drain moisture

Wall Mounting Clips

  • Use the Maxline clips with a screw for wall mounting
  • 1/2″ Tubing: space pipe clips every 3 ft
  • 3/4” Tubing: space pipe clips every 4 to 5 ft
  • 1” Tubing: space pipe clips every 4 to 5 ft

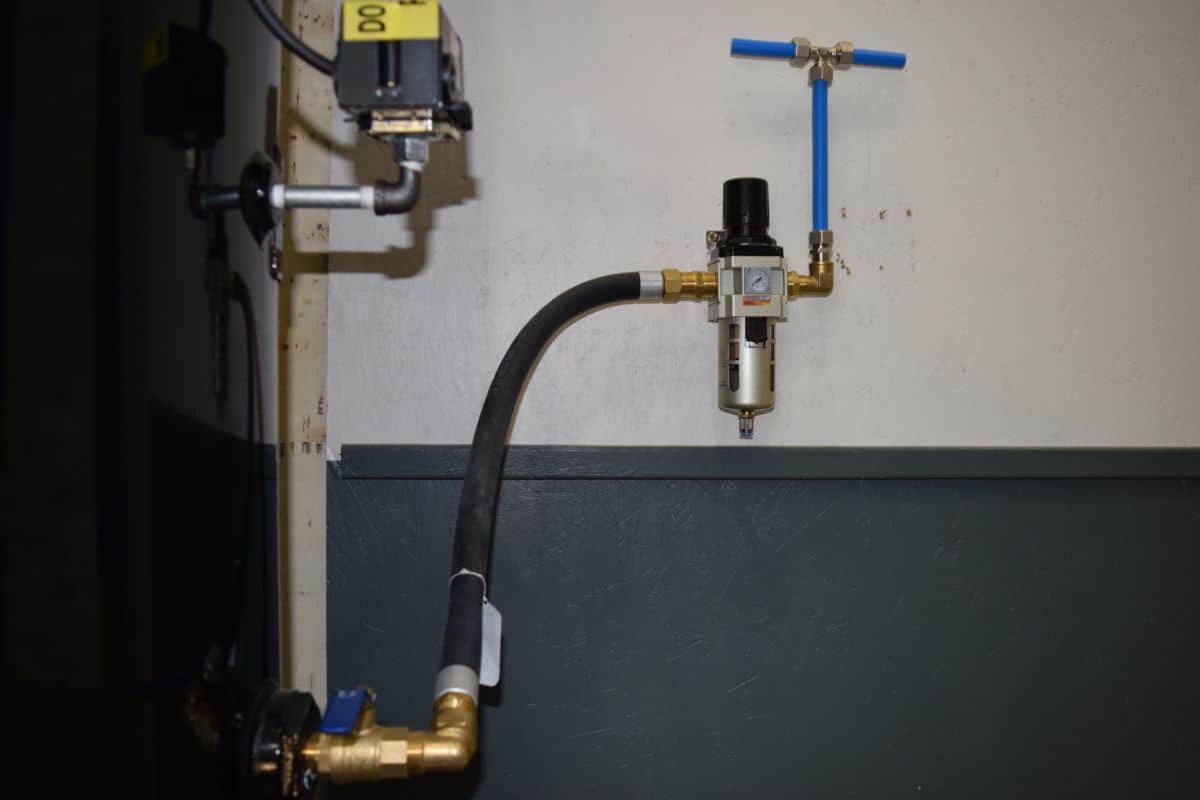

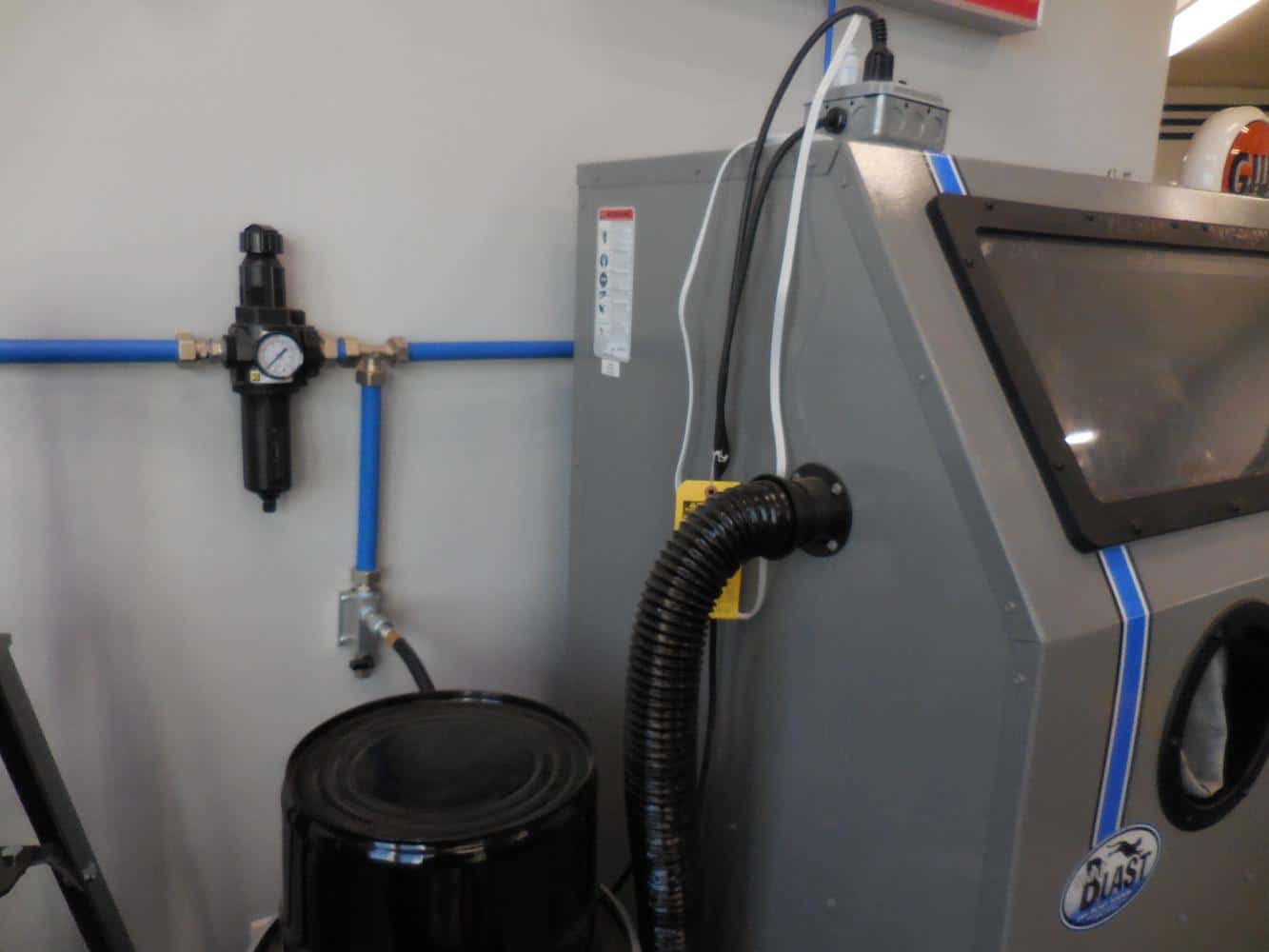

Compressor Hookup

  • Use a jumper hose to a Filter/Regulator unit
  • The air from the air compressor must enter the port labeled IN on the filter/regulator

Assembling Pipe Thread

  • Assemble all NPT threads with two wraps of Thread tape and then
  • PIPE SEALANT which prevents thread galling

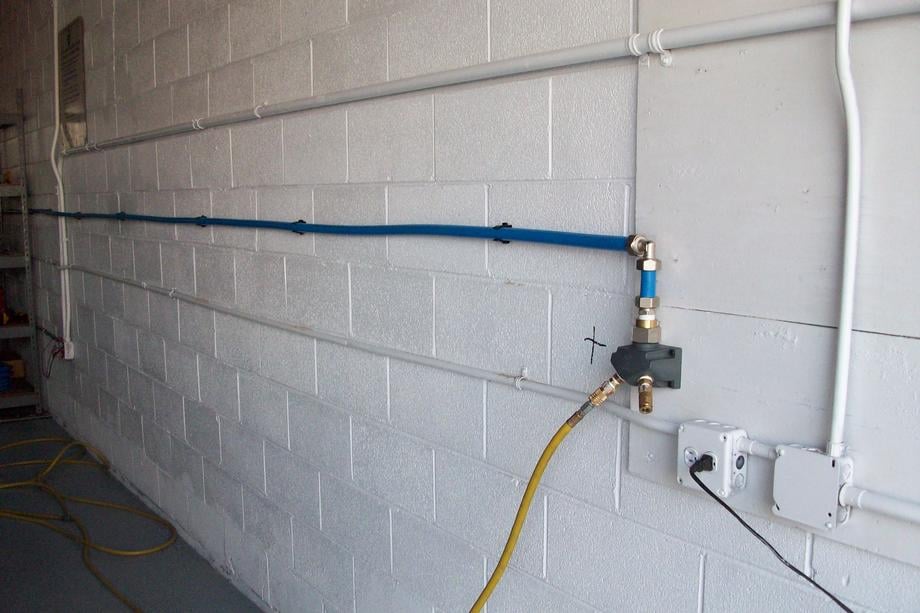

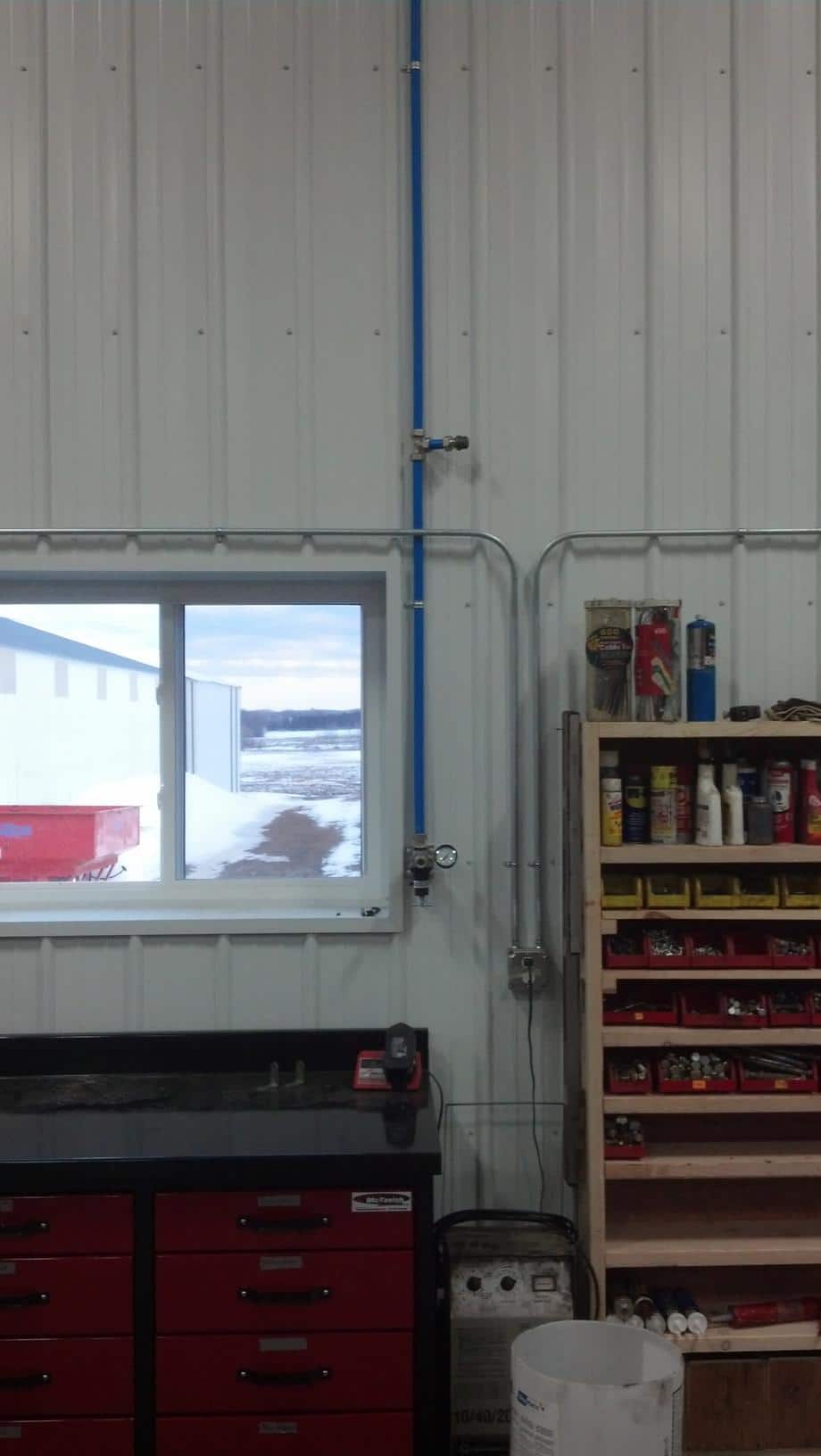

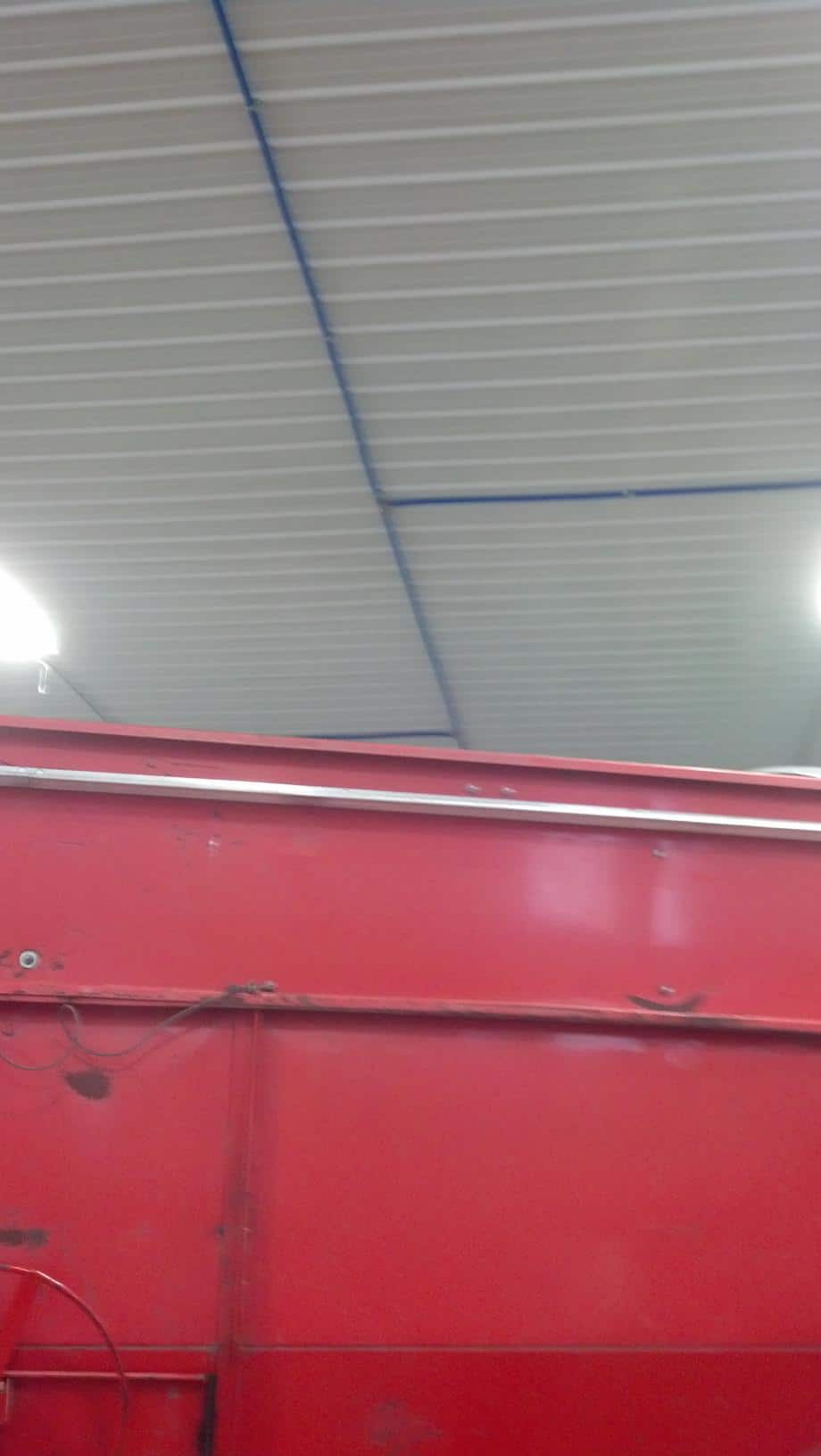

Customer Installation Photos
