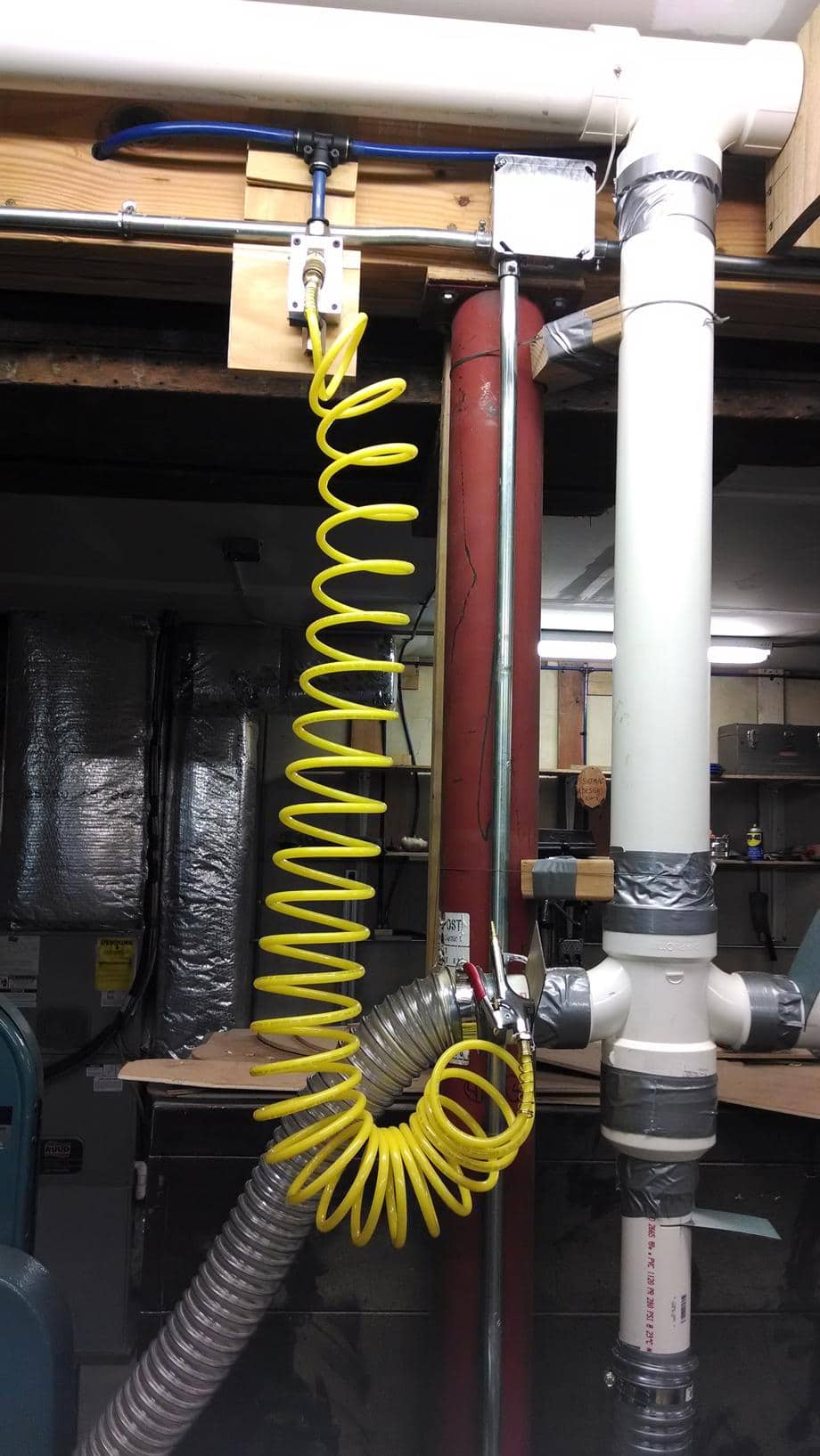

Installation Photos

#90100 Outlet Kit

Can be configured for In Wall, On Wall, Ceiling and Outdoor applications

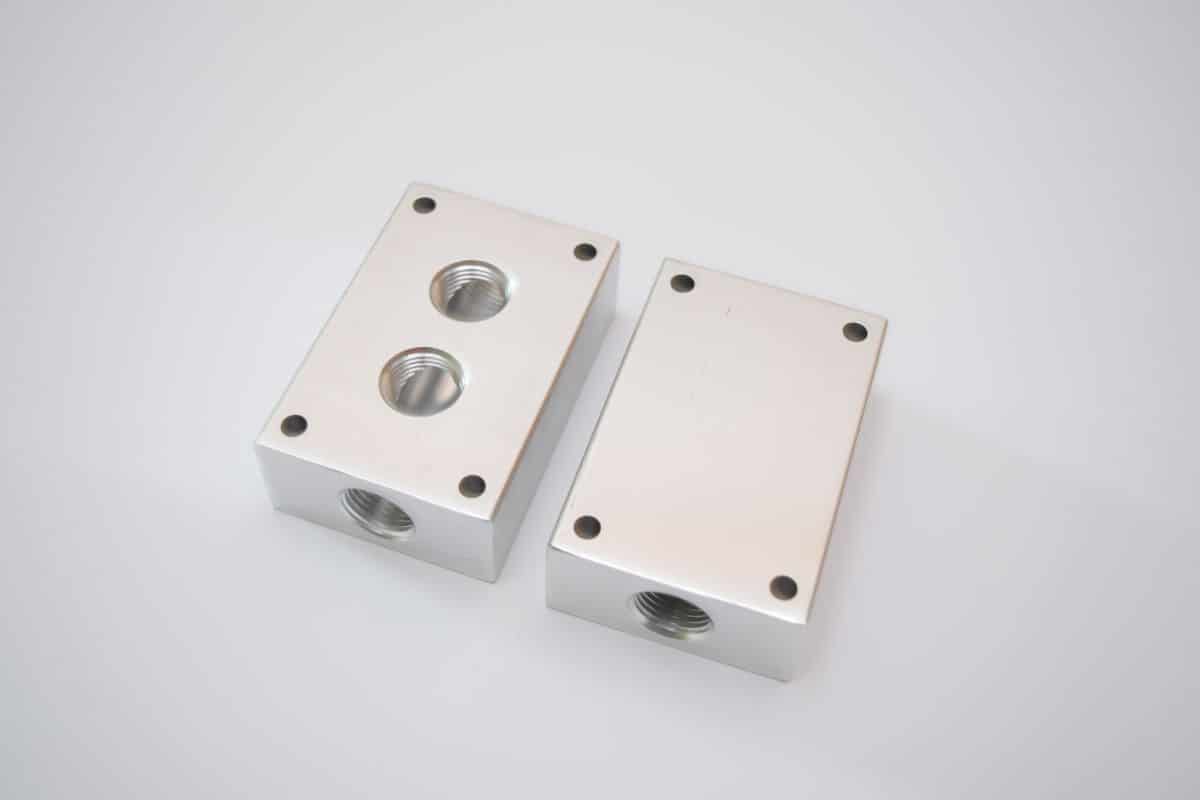

#90100 Outlet kit uses aluminum block #90120

90200 Compressor Manifold Kit

Can be configured for In Wall or On Wall applications

#90200 Compressor Manifold uses aluminum block #90220

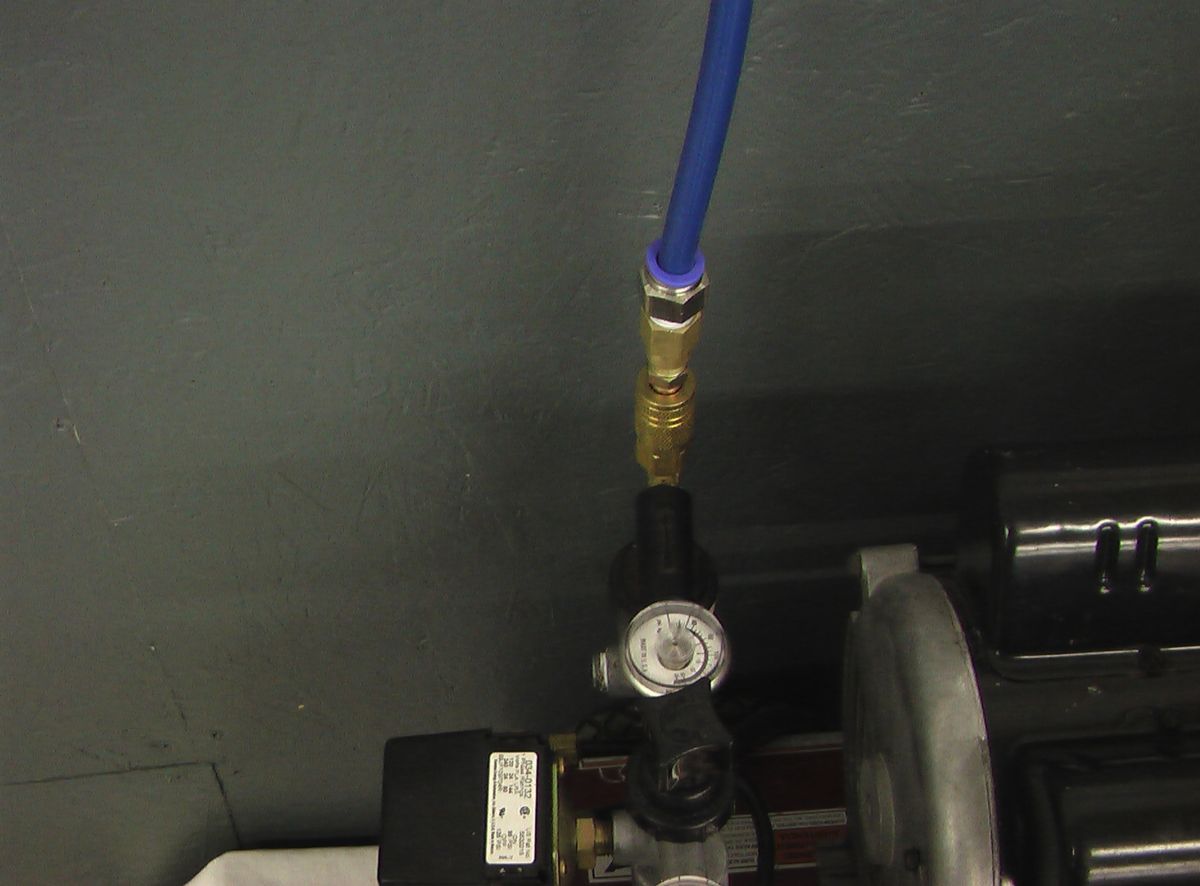

Compressor Hook up

  • For compressor maximum output pressure of 150 psi, use Rapidair tubing
  • For compressor maximum output greater than 150 psi, use jumper hose
  • Filter Regulator shown is 3/8 NPT Ports, our K93215
  • The air from the the air compressor must enter the port labeled IN on the filter/regulator11

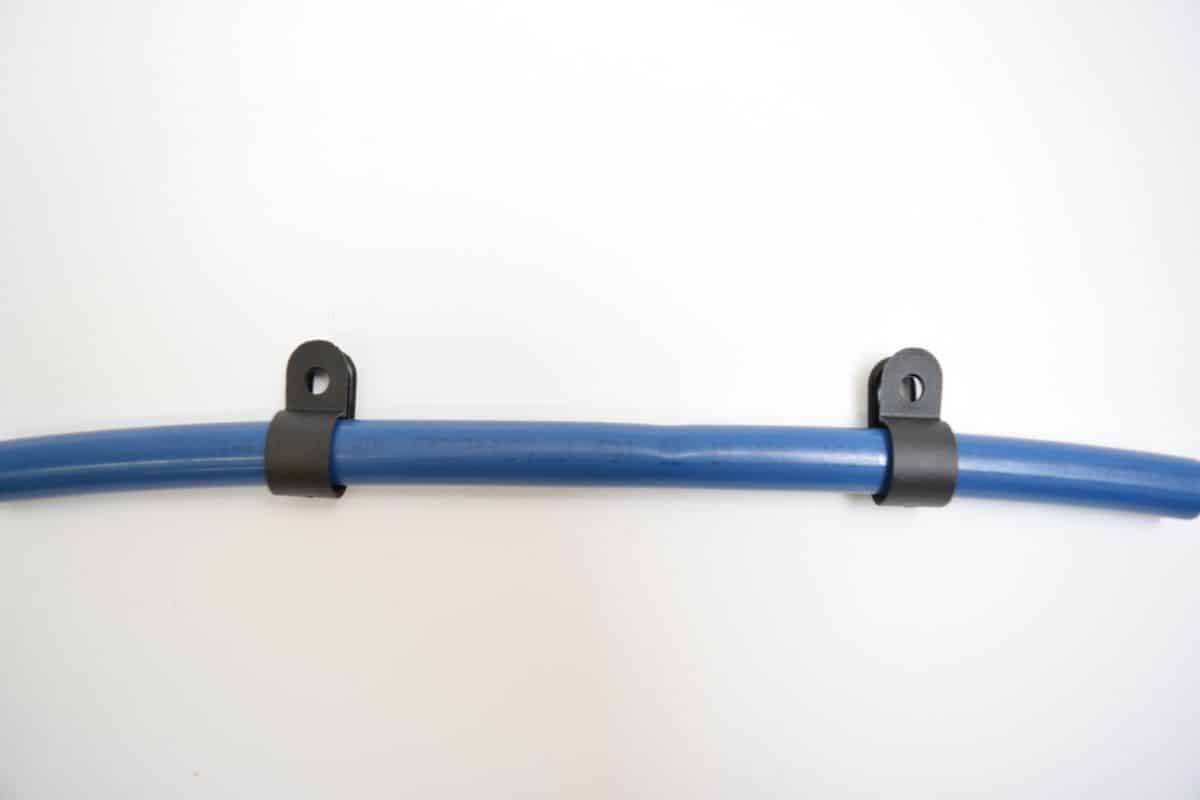

Wall Mounting Clips

Use the Rapidair clips with a screw for wall mounting, spacing every 16 inches

Assembling Pipe Thread

Assemble all NPT threads with two wraps of Thread tape and then PIPE SEALANT which prevents thread galling.

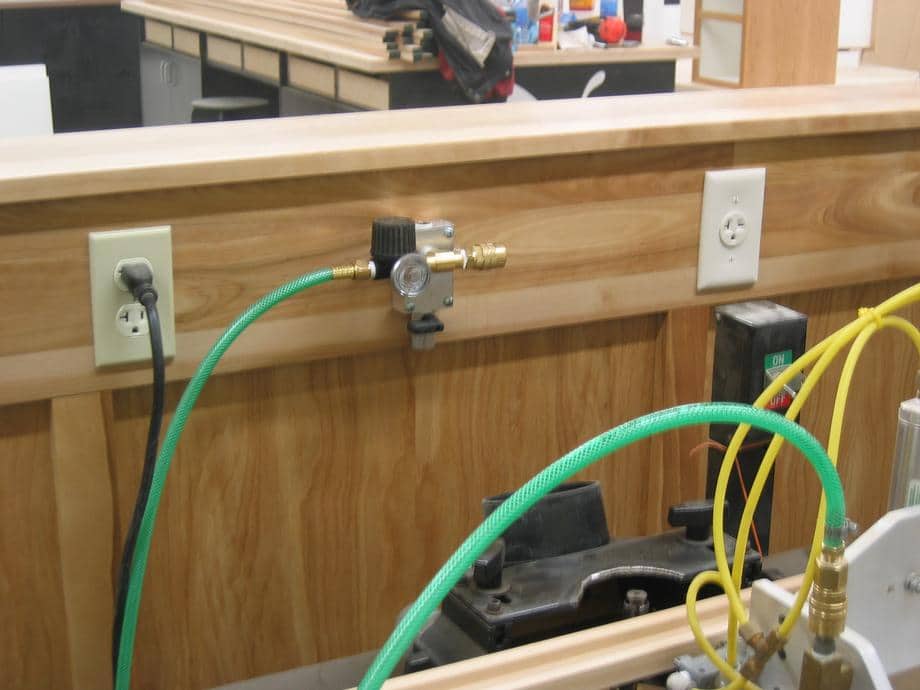

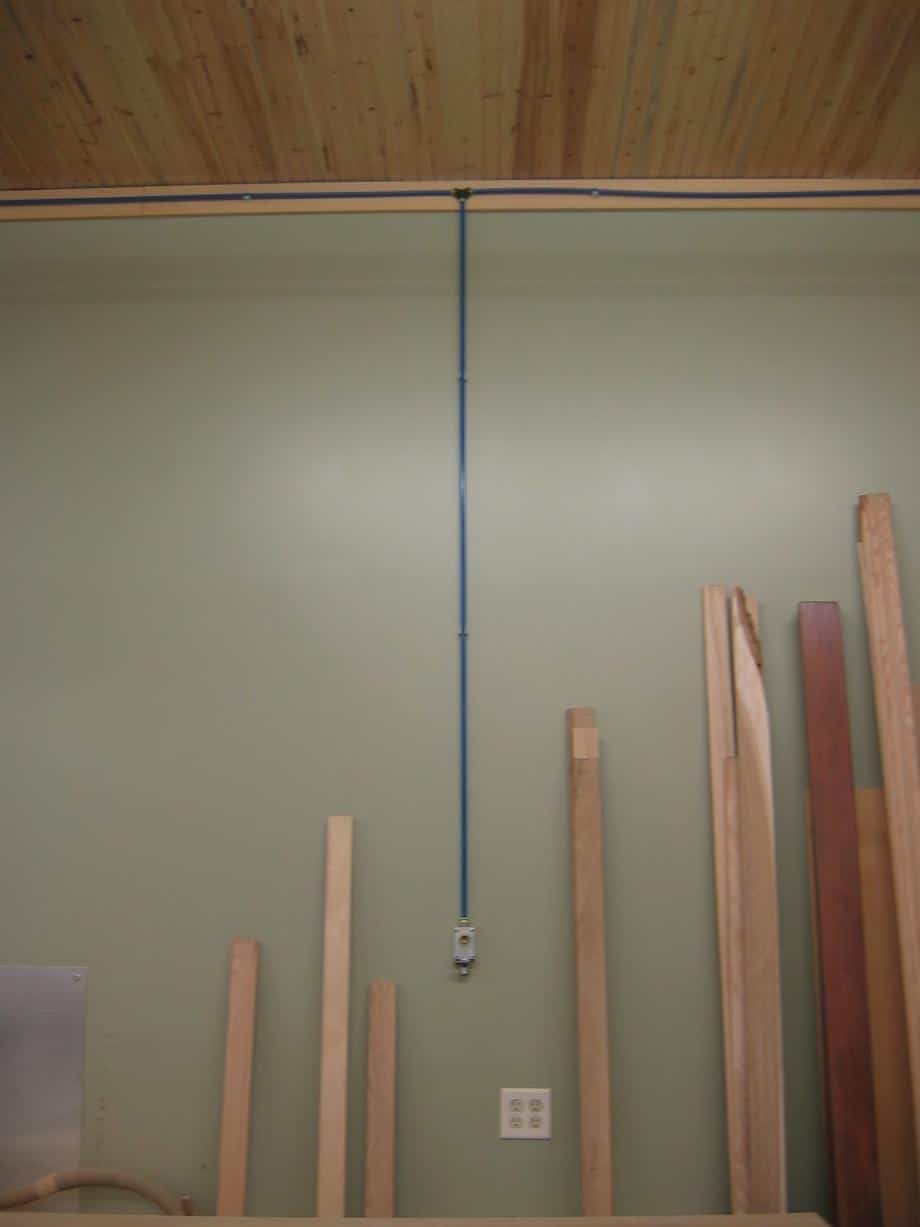

Customer Installation Photos
