Air Compressor Fittings and Couplings Get the Job Done

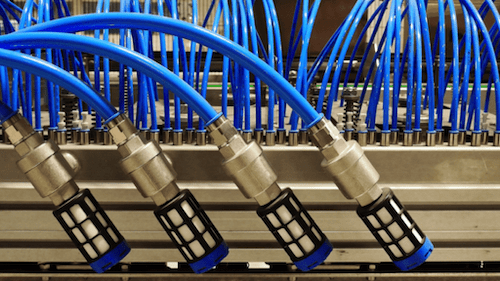

If you want to connect your air hose with your air compressor, quick disconnect couplers are a good option. Also known as quick release couplings, they provide a quick way to attach piping, with air fitting tools.

These types of air compressor fittings or couplings make air fittings simple so that the parts can be fitted by hand rather than by machine. They can improve the user’s experience when there is a need to put together a compressed air distribution system that is efficient with no leaks. It is beneficial for manufacturers of these parts since it simplifies testing and development.

One challenge with the use of quick release couplings is that the extra components increase the pressure drop around it. There should be a careful assessment of the existing compressed air distribution system. That way, you can ensure the rating of the coupling is within the pressure limitations of the system.

Types of Plugs for Couplings

Quick disconnect fittings have become a critical part of industries that use pneumatic tools. There is a wide variety of components designed to minimize leaks and make connections simpler.

Couplers can be broken down into two main categories:

  • Automotive
  • Industrial

The industrial plug is sometimes known as the M-style, while the automotive is listed as the T-style.

The V-style is meant for high flow compressor air distribution systems. It is similar to the industrial, except that the plug is wider to accommodate greater volumes of fluids.

There are different types of standards for plug couplers. You may come across numbers such as ¼”, or ½”. These sizes denote the volume capacity of the plug. The ¼” size plug is for basic flow systems found on most of the common air compressors.

Air Fitting Couplers

The use of parts such as clamps and couplers in air distribution systems should be carefully accessed to determine their suitability. Some couplers may look similar, but their precise fit onto the system is not hand-tight.

Even when the fit feels right, there may be signs of leaks or unexplained pressure drops. Depending on the application, the system may be subject to vibrations or high temperatures. Such factors can cause clamps and couplings to shift their position.

Different Manufacturers

There are many occasions where couplings can be switched between manufacturers. Most designs are standard, and it is expected that there will often be no issues when interchanging. However, small differences in fit can translate into significant changes in performance.

For example, universal couplers can work with both industrial and automotive plugs. But users of these parts report having different experiences because manufacturers do not always build them the same. There are also more incidences of reported leaks with the universal coupler.

Also, different standards may have varying tolerances for factors such as pressure and temperature. Even though these differences can be overlooked in basic applications, manufacturers often advise against interchanging. High flow applications will not have room to tolerate significant differences in the design of couplings, plugs, or clamps.

Pressure Rating Considerations and an Caution…

Air fittings often come with pressure ratings to minimize issues with leaks and pressure drops. Without a careful assessment of the system, clamps and couplings can be subjected to pressures beyond their rating. One way this can go undetected is if there are irregular spikes of pressure within the system.

If the quick release couplings are exposed to spikes, they will eventually breakdown the locking elements of the component. You can avoid this eventuality by ensuring that the coupling chosen for the application has a higher rating than the anticipated maximum pressure. Any part of the system that prevents airflow will be problematic for the entire system.

In Conclusion

Air compressor fittings or more specifically, quick connect couplings, provide a convenient way to connect air hoses with air fitting tools. It is important to understand the different standards, such as automotive and industrial plugs and their matching couplings. Some standards are interchangeable, but they don’t always work effectively. Avoid mixing parts to minimize the risk of leaks in air compressor systems.
