FASTPIPE COOLING KITS

  • Easy to install, versatile solution to eliminate excess moisture in an air system
  • Hot air flows into the cooling loop and travels a total distance of approximately 27 feet, cooling the air and causing water vapor to condense
  • Rectangular construction allows for easy draining through the ball valves
  • Inexpensive compared to the cost of a powered air dryer or after cooler

Part #: N/A

$363.49 – $475.49

QTY:

Description

F28072 PARTS LIST – 3/4″ FASTPIPE

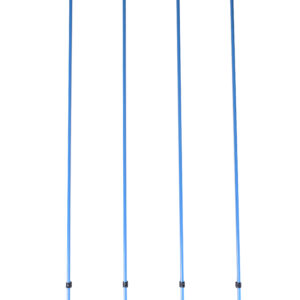

QTY: 4 F1863 3/4″ X 7’6″ PIPE

QTY: 5 F1003 3/4″ FASTPIPE ELBOWS

QTY: 3 F1009 3/4″ FASTPIPE REDUCING TEE x 1/2″ FNPT

QTY: 2 F3400 3/4″ FASTPIPE LARGE HEX NUT

QTY: 2 F3411 3/4″ FASTPIPE INSERT GASKET

QTY: 2 F3450 3/4″ FASTPIPE BRASS INSERT x 1/2″ FNPT

QTY: 4 K35050M 1/2″ NPT MALE X FEMALE BRASS BALL VALVE

QTY: 1 50616 1/2″ NPT BRASS HEX NIPPLE

QTY: 1 F2024 WALL OUTLET w 1/2″ FNPT INLET

QTY: 1 F0142 DEBURR TOOL

QTY: 2 F1020 3/4″ SPANNER WRENCH

QTY:1 F1022-10 3/4″ FASTPIPE WALL CLIPS (10 PACK)

QTY:1 F0213 1/2″ x 3FT COMPRESSOR JUMPER HOSE

F28092 PARTS LIST – 1″ FASTPIPE

QTY: 4 F2863 1″ X 7’6″ PIPE

QTY: 5 F2003 1″ FASTPIPE ELBOWS

QTY: 3 F2009 1″ FASTPIPE REDUCING TEE x 1/2″ FNPT

QTY: 2 F3100 1″ FASTPIPE LARGE HEX NUT

QTY: 2 F3111 1″ FASTPIPE INSERT GASKET

QTY: 2 F3175 1″ FASTPIPE BRASS INSERT x 3/4″ FNPT

QTY: 1 K35075M 3/4″ NPT MALE X FEMALE BRASS BALL VALVE

QTY: 3 K35050M 1/2″ NPT MALE X FEMALE BRASS BALL VALVE

QTY: 1 50620 3/4″ x 1/2″ NPT BRASS HEX NIPPLE

QTY: 1 F2025 WALL OUTLET w 3/4″ FNPT INLET

QTY: 1 F0142 DEBURR TOOL

QTY: 2 F2020 1″ SPANNER WRENCH

QTY: 1 F2022-10 1″ FASTPIPE WALL CLIPS (10 PACK)

QTY: 1 F0215 3/4″ x 3FT COMPRESSOR JUMPER HOSE
